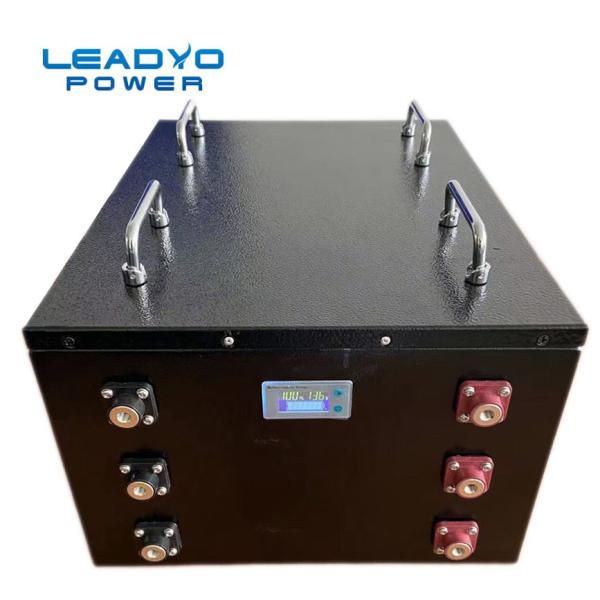

High Current Golf Cart Lifepo4 36V 60Ah 100A Battery Rechargeable
Lithium ion Batteries with LCD
Nominal Voltage 38.4V
Nominal Capacity 60 Ah
Capacity @ 10A 300 min
Energy 2304Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current,
short circuit, Over Temperature protection and balance function.
Can with Bluetooth/RS485/RS232/SMbus/I2C communuctaion
Features:
1)Steel Case design, Sturdy and Durable.
2)Handle design, easy to carry and install.
3)LCD Display or Bluetooth App, convenient to check the battery
capacity status.
4)Light weight 36V 60Ah around 25kg only.
5)With longer lifespan around 10 years.
6)Support OEM service.
7)Charger for optional.
8)Custom-made BMS With full over protection ,balancing function and
short circuit protection.
The ideal drop-in replacement & upgrade your golf cart from AGM
Batteries to LiFepo4 Battery.
Light in weight ,Small in size ,Play Longer ,10 Years Design life ,Zero maintenance,Plug and Play
Specification of 36V Lifepo4 Golf Cart Battery with LCD display :
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 38.4V | | Terminal Type | M8 |
| Nominal Capacity | 60Ah | | Weight | 25kg |
| Nominal Energy | 2304Wh | | Case Dimension(L*W*H) | 530*240*218mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | Stainless Steel
Metal case |
| Capacity | @10A: 300minutes(5hours) | | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series | NO | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | Unlimited | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 100A | | Max Charge Current | 50A |
| Peak Current | 150A /120s | | Recommended Charge Current | 10A - 25A |
| Discharge pulse current | 300±50A (31±10ms) | | End of Charge voltage | 43.8V±0.2V |
| BMS Low Voltge Cut-off | 24V | | End of discharge voltage | 24V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 for cells |
| Storage Temperature Range | -20～+45℃ | |
| Battery High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
Multiple monitoring for optional of 36V 60Ah Lithium golf cart
battery:
By LCD .
By Bluetooth APP (Free)
Bulit-in super safety lifepo4 prismatic cells and BMS
Multiple Protection Circuit with MOS / IC solution with low
internal resistance
More Golf Cart Lithium Battery For Optional:
Welcome to customize LOG /Size /Functions / Color :
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech
enterprise, specializing in R&D and marketing of Lithium
rechargeable battery products. Our Lithium battery products are
widely used in Marine boat /RV/ Camping
cart/AGVGolf-cartelectric-motorcycle/Solar energy storage
systemelectric vehicleselectric tools/UPS backupTelecom
towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based
on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
