High Current Golf Cart Lifepo4 36V 60Ah 70A Battery Rechargeable
Lithium ion Batteries with LCD
Lithium Iron Phosphate Battery 36V 100Ah for Golf Cart
Nominal Voltage 38.4V
Nominal Capacity 60 Ah
Capacity @ 20A 180 min
Energy 2304 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current,
short circuit, Over Temperature protection and balance function.
Can with Bluetooth/RS485/RS232/SMbus/I2C communuctaion
Features of 36V 60AH LiFePO4 Battery For Golf Cart
1)Steel Case design, Sturdy and Durable.
2)Handle design, easy to carry and install.
3)LCD Display or Bluetooth App, convenient to check the battery
capacity status.
4)Light weight 36V 60Ah around 30kg only.
5)With longer lifespan around 10 years.
6)Support OEM service.
7)Charger for optional.
8)Custom-made BMS With full over protection ,balancing function and
short circuit protection.
The ideal drop-in replacement & upgrade from AGM
Specification of LiFepo4 36V Golf Cart Smart Battery with LCD or
Bluetooth
| Nominal voltage | (36V)38.4V | (36V)38.4V | (36V)38.4V | (36V)38.4V |
| Capacity (Ah) | 50Ah | 100Ah | 105Ah | 150Ah |
| Battery Energy | 1920Wh | 3840Wh | 4032Wh | 5760Wh |
| Self-discharge | ≤3% per month at 25 | ≤3% per month at 25 | ≤3% per month at 25 | ≤3% per month at 25 |
| Cycle life | >4000 cycles | >4000 cycles | >4000 cycles | >4000 cycles |
| Charge Mode | CC/CV | CC/CV | CC/CV | CC/CV |
| Charge Cut-off Voltage | 43.8V | 43.8V | 43.8V | 43.8V |
| Recommended Charge Current | 10A-20A | 10A-50A | 10A-50A | 30A-75A |
| Max. Continuous Charge Current | 100A | 100A | 100A | 100A |
| Max. Continuous Discharge Current | 70A | 150A | 150A | 200A |
| Max. Pulse Current | 100A 20S | 200A 40S | 200A 40S | 300A 40S |
| 150A/0.5S | 700A/0.5S | 700A/0.5S | 900A/0.5S |
| Discharge Cut-off Voltage | 24V | 24V | 24V | 24V |
| Communication mode | UART/RS485/CAN | UART/RS485/CAN | UART/RS485/CAN | UART/RS485/CAN |
| Storage temperature | 0~45℃ | 0~45℃ | 0~45℃ | 0~45℃ |
| Working Environment | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) | 0℃~+55℃(Charge) |
| -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) | -20℃~+65℃(Discharge) |
| Housing Material | Metal case | Metal case | Metal case | Metal case |
| Bluetooth 5.0 | Yes | Yes | Yes | Yes |
| Display Screen | Optional | Optional | Optional | Optional |
| OEM & ODM | Optional | Optional | Optional | Optional |
| Dimension | 483*170*240 | 385*325*245 | 385*325*245 | 572*308*204 |
| Weight | 44.00lbs.(20kg) | 83.77lbs.(38kg) | 83.77lbs.(38kg) | 124.74lbs.(52kg) |

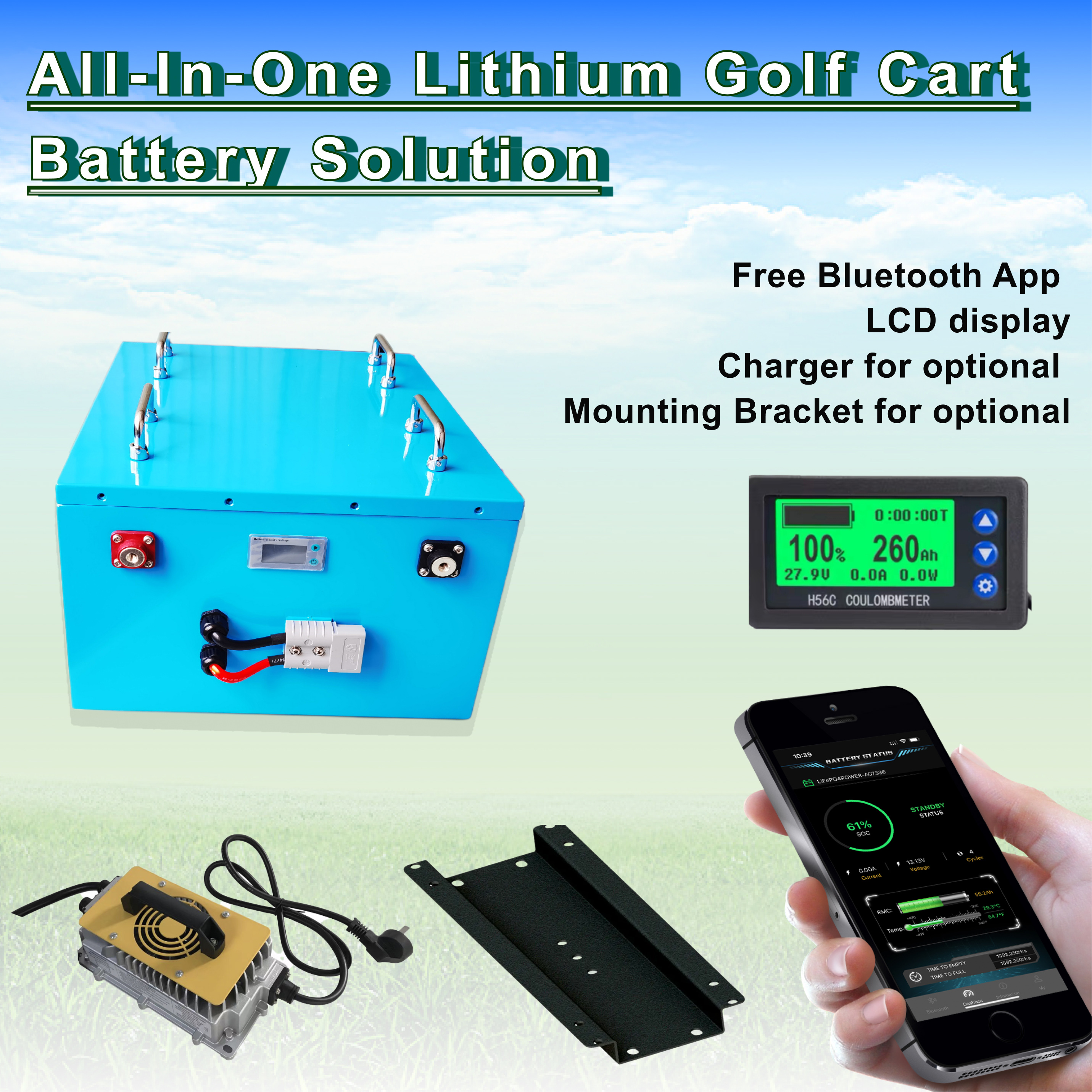

Picture of 36V 60Ah Lithium iron LFP battery ,Golf Cart LiFePO4
Battery
We have 2 mamy function for optional :
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech
enterprise, specializing in R&D and marketing of Lithium
rechargeable battery products. Our Lithium battery products are
widely used in Marine boat /RV/ Camping
cart/AGVGolf-cartelectric-motorcycle/Solar energy storage
systemelectric vehicleselectric tools/UPS backupTelecom
towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based
on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
