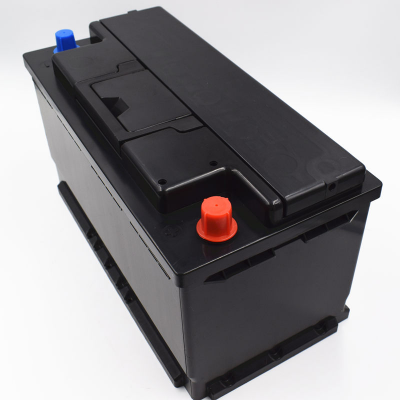

Name: Lithium 12V Starter Batteries 128V 60Ah LiFePO4 600A Trolling Motor LiFePO4 Battery
Brand: LEADYO
Price: 1 USD

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	AT12V060
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

LiFePO4 Starting battery 12V 60Ah 600A Trolling motor Lithium Battery For boat , vechiles , truck .etc

Brief introductio of Lifepo4 starter battery 12V 80Ah 1200A trolling motor battery

Nominal Voltage 12.8V

Nominal Capacity 60 Ah

Capacity @ 20A 180 min

Energy 768Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Features of Lifepo4 starter battery 12V 60Ah 600A trolling motor battery

Lifepo4 High discharge cells inside
Smart BMS inside for providing multiple protection to each cells.
CCA 1200A
Higher Performance Light weight LifePO4 battery
100% Maintenance free
12V and 24V Both available
Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.
Doul Purpose, deep cycles and starting functions

Specifications of Lifepo4 starter battery 12V 80Ah 1200A trolling motor battery

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	60Ah	Weight	8kg
Nominal Energy	768Wh	Case Dimension(LWH)	L280xW175xH188mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@20A: 180minutes(3hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	NO	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	50A
CCA	600A	Recommended Charge Current	20A - 50A
Discharge pulse current	1800±50A (31±10ms)	End of Charge voltage	14.6V
BMS Low Voltge Cut-off	10V	End of disCharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.

Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.

Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
