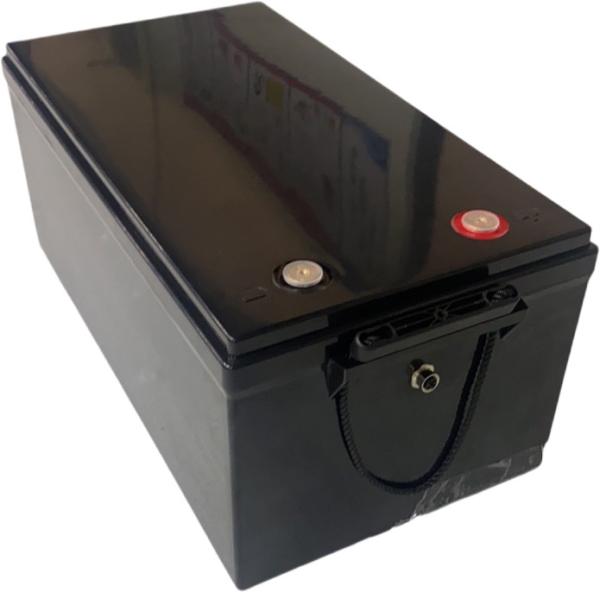

    RS485 CAN Lithium Battery 48V 51.2V 160Ah LiFePO4 Battery Pack For Epropulsion Electric Outboard

    Ask Lasest Price
    Brand Name : LEADYO
    Model Number : LP48V160
    Certification : UN38.3, CE,MSDS,UKCA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
    Supply Ability : 60Mwh
    Delivery Time : 15-45 Days
    • Product Details
    • Company Profile

    RS485 CAN Lithium Battery 48V 51.2V 160Ah LiFePO4 Battery Pack For Epropulsion Electric Outboard


    RS485 CAN Commnication 48V 51.2V 160Ah Lithium Battery LiFeP04 Waterproof Battery for Epropulsion Electric Outboard

    Lithium Iron Phosphate Battery 48V 150Ah


    Nominal Voltage:51.2V

    Nominal Capacity 160 Ah

    Capacity @ 30A 300 min

    Energy 8192 Wh

    Resistance ≤30 mΩ @ 50%

    SOC Self Discharge <3% / Month

    Balancing function

    With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.


    Features:


    1. Lighter in weight, heavier on power
    2. Excellent cycle life. Our battery has more than 3000 cycle times and there is a 3-year warranty
    3. Deep cycle. can be discharged to 90% vs lead acid recommended 50% depth of discharge.
    4. Maintenance free or automatic repair
    5. Safer performance.Our batteries have passed different safety tests.
    6. Bluetooth function and heated function can be added.

    ELECTRICAL SPECIFICATIONSMECHANICAL SPECIFICATIONS
    Nominal Voltage51.2VTerminal TypeM8
    Nominal Capacity160AhWeight53kg
    Nominal Energy8192WhCase Dimension(L*W*H)640*245*220mm
    Internal Resistance≤30 @50% SOCCase TypeABS
    Capacity@30A: 300minutes(5hours)Cell type / ChemistryLiFePO4
    Self Discharge5% /per monthLCD or Bluetooth FunctionOptional
    Maximum In SeriesNOBMS:low voltage,high voltage,over temperature,
    Maximum In ParallelNo limitOver current,short-circuit protection .etc
    Discharge Current and Voltage SpecificationsCharge Current and Voltage Specifications
    MAX Continuous Discharge Current150AMax Charge Current150A
    Peak Current500ARecommended Charge Current20A - 50A
    Discharge pulse current600±50A (31±10ms)End of Charge voltage58.4V±0.2V
    BMS Low Voltge Cut-off40V (2.5V±0.05v) pc)Balancing currentAuto start
    Short Circuit Protection200-800 µs Auto recover or charge releaseBalancing Voltage3.6V±0.05v pc
    Temperature RangesCOMPLIANCE SPECIFICATIONS
    Discharge Temperature-20+65CertificationsCE for Battery Pack
    Charge Temperature-20+45UL1642 & IEC62133 & BIS for cells
    Storage Temperature Range-20+45
    BMS High Temperature Protection90Shipping classificationUN 3480
    Battery High Temperature Protection60



    FAQ


    Q1. Can I order samples?
    Answer: Yes, we welcome to order samples to test and check the quality.


    Q2. What about the delivery time?
    Answer: Samples will take 1-2 weeks, and mass production time will take 3-5 weeks, depending on the order quantity.


    Q3. Do you have a minimum order quantity limit?
    Answer: Yes, we have a MOQ for mass production, which depends on different part numbers. 1~10pcs sample order. The minimum order quantity is 1pc which can be used for sample inspection.


    Q4. How do you ship the goods and how long will it take to arrive?
    Answer: It usually takes 5 to 7 days to arrive. Air and sea are also optional.


    Q5. How to place an order?
    Answer: Let us know your requirements or applications first. Secondly, we quote according to your request or suggestion. We will arrange production after you confirm.


    Q6. Can I print my logo on the product?
    Answer: Yes. Please inform us formally before production, and first confirm the design based on our samples.
