BMS 200ah Leadyo Battery Lithium Ion Camper Battery 190mm Height For RV Underseat

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V200
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

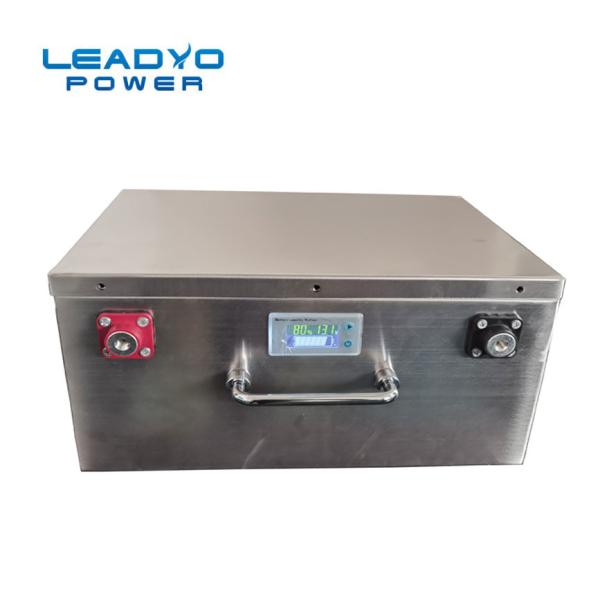

BMS 200ah Leadyo Battery Lithium Ion Camper Battery 190mm Height For RV Underseat

Leadyo 12v 200ah 190mm height rv underseat battery lithium ion camper battery

12V 200Ah 200A BMS 350*312*190mm Underseat liFePO4 Battery for caravan, camper, 4WD ,Marine etc.You can now enjoy a lightweight battery that will simply drop in as a direct replacement for your traditional lead acid battery.

Can make 4pcs in series to get a 48V battery pack
Unlimited parallel to add the capacity 200Ah,300Ah to 1000Ah
Custom Stickers on the shell.
Bluetooth APP with customer's company logo
With CE,UN38.3 and MSDS certificates

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	200Ah	Weight	22kg
Nominal Energy	2560Wh	Case Dimension(LWH)	350312190mm
Internal Resistance	≤30 @50% SOC	Case Type	Metal case
Capacity	@40A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	150A
Peak Current	500A	Recommended Charge Current	30A - 75A
Discharge pulse current	600±50A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

1. Are you factory or trade company?We ara leading battery manufacturer in China,Is a high-tech
enterprise, specializing in R&D and marketing of Lithium
rechargeable battery products.

2.What is your main product?
12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
* 12V 24V LiFePO4 Batteries for RV/ Marine application
* 12V Automatic Start-Stop LiFePO4 Battery
* 48V Golf carts Batteries
* Solar street light system
* 12V / 24V Floor machine batteries.
* Other solar power battery system
* 1-32S Max 250A BMS/PCM
* battery charger
* Lithium ion cells, LiFePo4 cells and LTO cells

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , 20-35days for bulk order

5.Do you accept OEM?
Yes OEM and ODM both available, and can with your logo on the
battery.
