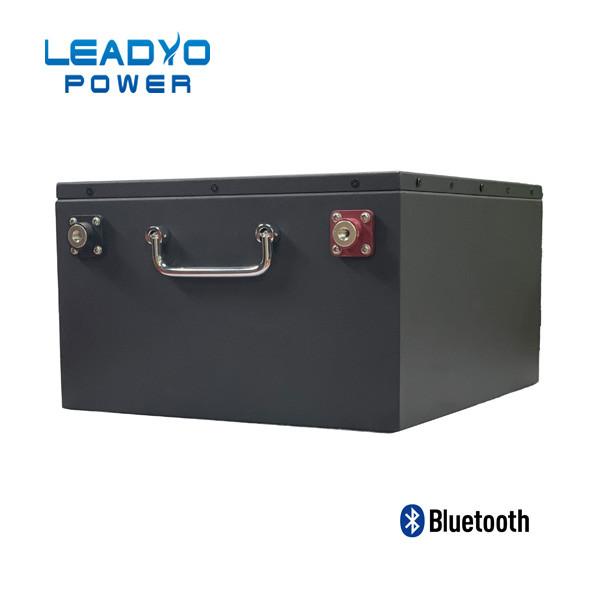

100ah 24V Lifepo4 Battery Parallel No Limit Built in heat sink For RV

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP24V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

100ah 24V Lifepo4 Battery Parallel No Limit Built in heat sink For RV

24V Lifepo4 Battery 12v 100ah 200ah lithium ion battery pack for rv

Lithium Iron Phosphate Battery 25.6 100Ah

Nominal Voltage 2560 V

Nominal Capacity 100 Ah

Capacity @ 20A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function

Application:Marine, RV,camping,Electric-fence, led light and other Solar/Wind Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike, robot,power tooling, UPS, Medical and Military Equipment etc.

Smart BMS can be with Bluetooth,SMBus,HDQ,I2C,RS232,RS485 commnication.
Can make series up to 48V,parallel no limit.
All the BMS and PCM has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Built in heat sink With powerful cooling performance,
Support high current 500-800A Short circuit protection

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	25.6V	Terminal Type	M8
Nominal Capacity	100Ah	Weight	22kg
Nominal Energy	2560Wh	Case Dimension(LWH)	350312190mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@20A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	2PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	100A
Peak Current	300A	Recommended Charge Current	20A - 50A
Discharge pulse current	500±50A (31±10ms)	End of Charge voltage	28.8V±0.2V
BMS Low Voltge Cut-off	20V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

100ah 24V Lifepo4 Battery Parallel No Limit Built in heat sink For RV

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China, it's a new hi-tech enterprise we focus on provide best battery solution for Boat ,RV,EV, Medical devices ,Robot,Off grid system, solar system and so on. besides we also one-stop-solution BMS manufacturer. It's good cost-down for both of us, the same time we can provide best battery solution for you.

2.What's your advantages?

Our Battery Packs with SmarTEC Custom-Made BMS ,share with you the internal structure of our products, Most customers choose our battery packs because our internal process is perfect, humanized, safe and our Advanced BMS system.Our BMS Technology (powered by Texas structure) is designed for the our battery packs,because We are TI's strategic partner in China. We buy tens of millions of TI's chips every year. We can directly provide the different test date to the TI company and they process in to the chip .. Together with our class a batteries (China Leading brand Cells like EVE,CALB,BYD, or Lishen ), we ensure that you have the good quality and competitive price solution.

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?

OEM and ODM both available
