    LEADYO 30Ah 48V Lifepo4 Battery 48 Volt Lithium Battery Pack For Golf Cart

    Ask Lasest Price
    Brand Name : LEADYO
    Model Number : LP48V030
    Certification : UN38.3, CE,MSDS,UKCA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
    Supply Ability : 60Mwh
    Delivery Time : 15-45 Days
    • Product Details
    • Company Profile

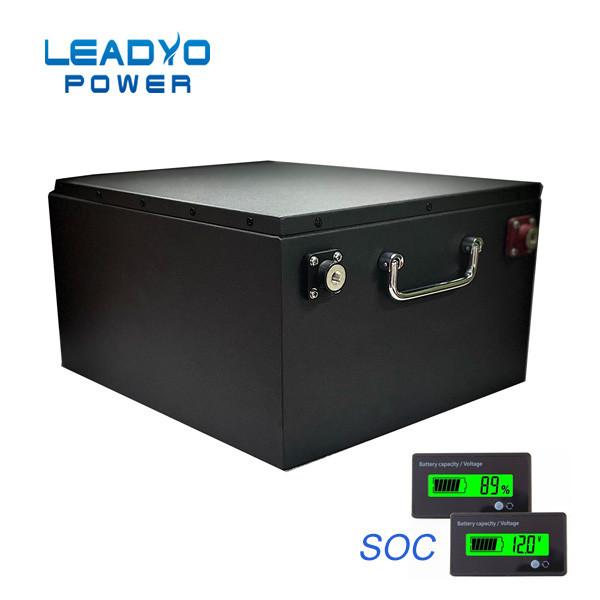

    LEADYO 30Ah 48V Lifepo4 Battery 48 Volt Lithium Battery Pack For Golf Cart

    LiFePO4 30Ah 60Ah 48 volt lithium battery pack for electric golf cart


    Lithium Battery with SMbus, I2C ,RS232 ,RS235 or Bluetooth


    We provide:

    1. Research and development,Design and manufactur for lithium batteries.
    2. Custom-made BMS can be with Bluetooth,RS232,RS485,UART,SMbus,I2C,HDQ etc
    3. UN, UL & IEC testing and certification
    4. Large engineering department and testing lab
    5. State-of-the-art 86,000 ft2 production facility
    6. SmarTEC is an ISO 9001 certified, and an new and high-tech enterprise

    ELECTRICAL SPECIFICATIONSMECHANICAL SPECIFICATIONS
    Nominal Voltage51.2VTerminal TypeM8
    Nominal Capacity20AhWeight10kg
    Nominal Energy1024WhCase Dimension(L*W*H)customized
    Internal Resistance≤30 @50% SOCCase TypeMetal case/ PVC
    Capacity@4A: 300minutes(5hours)Cell type / ChemistryLiFePO4
    Self Discharge5% /per monthLCD or Bluetooth FunctionOptional
    Maximum In SeriesNOBMS:low voltage,high voltage,over temperature,
    Maximum In ParallelNo limitOver current,short-circuit protection .etc
    Discharge Current and Voltage SpecificationsCharge Current and Voltage Specifications
    MAX Continuous Discharge Current20AMax Charge Current20A
    Peak Current20ARecommended Charge Current4A - 10A
    Discharge pulse curret50±10A (31±10ms)End of Charge voltage57.6V±0.2V
    BMS Low Voltge Cut-off40VEnd of discharge voltage40V
    Short Circuit Protection200-800 µs Auto recover or charge releaseBalancing Voltage3.6V±0.05v pc
    Temperature RangesCOMPLIANCE SPECIFICATIONS
    Discharge Temperature-20+65CertificationsCE for Battery Pack
    Charge Temperature-20+45UL1642 & IEC62133 for cells
    Storage Temperature Range-20+45
    BMS High Temperature Protection90Shipping classificationUN 3480
    Battery High Temperature Protection60


    FAQ


    1. Are you factory or trade company?
    We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

    2.What is your main product?
    12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
    * 12V 24V LiFePO4 Batteries for RV/ Marine application
    * 12V Automatic Start-Stop LiFePO4 Battery
    * 48V Golf carts Batteries
    * Solar street light system
    * 12V / 24V Floor machine batteries.
    * Other solar power battery system
    * 1-32S Max 250A BMS/PCM
    * battery charger
    * Lithium ion cells, LiFePo4 cells and LTO cells


    3.How to get a quote?
    Please contact with us sales5@leadyo-battery.com

    4.When you delivery order?
    Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

    5.Do you accept OEM?
    OEM and ODM both available
