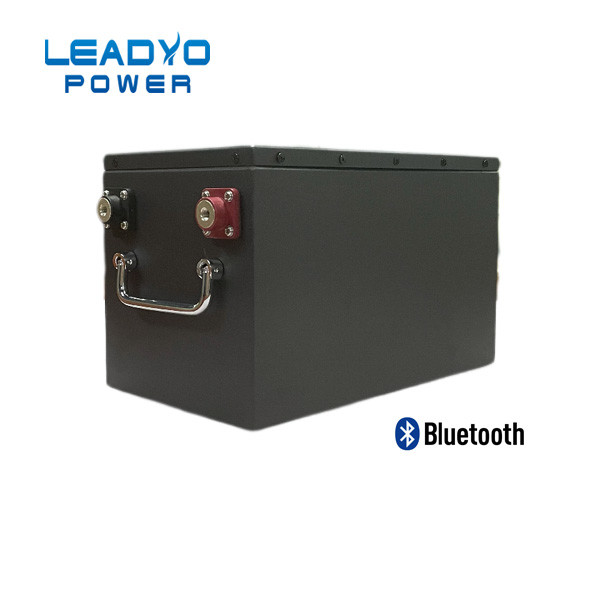

IP54 48V 100ah Lifepo4 Battery Pack 2.5kwh 5kwh 10kwh Lithium Ion Battery

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP48V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

IP54 48V 100ah Lifepo4 Battery Pack 2.5kwh 5kwh 10kwh Lithium Ion Battery

48v 100ah Lifepo4 Battery Pack 2.5kwh 5kwh 10kwh Lithium Ion Battery

Lithium Iron Phosphate Battery 12.8V 100Ah

Nominal Voltage 25.6 V

Nominal Capacity 100 Ah

Capacity @ 20A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

Features:

1) Steel Case design, Sturdy and Durable.
2) Handle design, easy to carry and install.
3) LCD Display, convenient to check the battery capacity status.
4), Light weight 48V 100Ah around 41kg only
5) With longer lifespan around 10 years.

Custom-made BMS With full over protection ,balancing function and short circuit protection

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	51.2V	Terminal Type	M8
Nominal Capacity	100Ah	Weight	42kg
Nominal Energy	5120Wh	Case Dimension(LWH)	550305260mm
Internal Resistance	≤30 @50% SOC	Case Type	Metal
Capacity	@20A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	NO	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	100A
Peak Current	300A	Recommended Charge Current	20A - 50A
Discharge pulse current	500±50A (31±10ms)	End of Charge voltage	57.6V±0.2V
BMS Low Voltge Cut-off	40V	End of discharge voltage	40V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

IP54 48V 100ah Lifepo4 Battery Pack 2.5kwh 5kwh 10kwh Lithium Ion Battery

FAQ

1. Are you factory or trade company?

We are professional manufacturer in lithium battery field,with professional research anddevelopment team.

2.What is your main product?
Main products of protection circuit module for battery pack,especially cylindrical Li-ion battery.Li-ion polymer battery pack and LifePO4 battery.

3.How to proceed with an order?
Firstly, let us know your requirement or application.Secondly,we quote according to your requirements or our
suggestions.Thirdly,customer confirms the samples and place a deposit for formal order. Fourthly,we arrange the production.

4.When you delivery order?
Normally 5-7 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?
