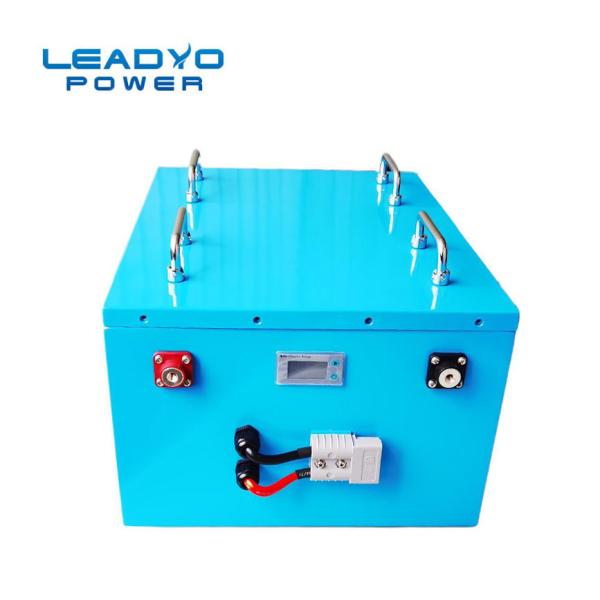

Rechargeable 48V Lifepo4 Battery 100Ah High Temperature Protection For Solar System

    Buy cheap Rechargeable 48V Lifepo4 Battery 100Ah High Temperature Protection For Solar System from wholesalers

    Buy cheap Rechargeable 48V Lifepo4 Battery 100Ah High Temperature Protection For Solar System from wholesalers
    • Buy cheap Rechargeable 48V Lifepo4 Battery 100Ah High Temperature Protection For Solar System from wholesalers

    Rechargeable 48V Lifepo4 Battery 100Ah High Temperature Protection For Solar System

    Ask Lasest Price
    Brand Name : LEADYO
    Model Number : LP48V100
    Certification : UN38.3, CE,MSDS,UKCA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
    Supply Ability : 60Mwh
    Delivery Time : 15-45 Days
    • Product Details
    • Company Profile

    Rechargeable 48V Lifepo4 Battery 100Ah High Temperature Protection For Solar System


    48V 100Ah high temperature protection Lifepo4 Rechargeable Battery for solar system


    Lithium Iron Phosphate Battery 48V 100Ah


    Nominal Voltage 51.2V

    Nominal Capacity 100 Ah

    Capacity @ 20A 300 min

    Energy 5120 Wh

    Resistance ≤30 mΩ @ 50%

    SOC Self Discharge <3% / Month

    Balancing function

    With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.


    Features:


    1) Steel Case design, Sturdy and Durable.
    2) Handle design, easy to carry and install.
    3) LCD Display, convenient to check the battery capacity status.
    4), Light weight 48V 100Ah around 41kg only
    5) With longer lifespan around 10 years.

    Custom-made BMS With full over protection ,balancing function and short circuit protection


    ELECTRICAL SPECIFICATIONSMECHANICAL SPECIFICATIONS
    Nominal Voltage51.2VTerminal TypeM8
    Nominal Capacity100AhWeight42kg
    Nominal Energy5120WhCase Dimension(L*W*H)550*305*260mm
    Internal Resistance≤30 @50% SOCCase TypeMetal
    Capacity@20A: 300minutes(5hours)Cell type / ChemistryLiFePO4
    Self Discharge5% /per monthLCD or Bluetooth FunctionOptional
    Maximum In SeriesNOBMS:low voltage,high voltage,over temperature,
    Maximum In ParallelNo limitOver current,short-circuit protection .etc
    Discharge Current and Voltage SpecificationsCharge Current and Voltage Specifications
    MAX Continuous Discharge Current100AMax Charge Current100A
    Peak Current300ARecommended Charge Current20A - 50A
    Discharge pulse current500±50A (31±10ms)End of Charge voltage57.6V±0.2V
    BMS Low Voltge Cut-off40VEnd of discharge voltage40V
    Short Circuit Protection200-800 µs Auto recover or charge releaseBalancing Voltage3.6V±0.05v pc
    Temperature RangesCOMPLIANCE SPECIFICATIONS
    Discharge Temperature-20+65CertificationsCE for Battery Pack
    Charge Temperature-20+45UL1642 & IEC62133 for cells
    Storage Temperature Range-20+45
    BMS High Temperature Protection90Shipping classificationUN 3480
    Battery High Temperature Protection60


    FAQ


    Q: Can I have a sample order?

    A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

    Q: Do you have MOQ limit?
    A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

    Q: How about the lead time?
    A: Samples will takes 5-7 business days. Mass production will takes 25-35 days. It depends on quantity.

    Q: How about shipping and delivery time?
    A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP
    service, delivery time is 11-15 business days. Airline and sea shipping also available.

    Q: What about after-sale service?
    A: We will offer you 2 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
