LiFePO4 75Ah 24V Lithium Ion Rechargeable Battery For Solar Power Battery System

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP24V075
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

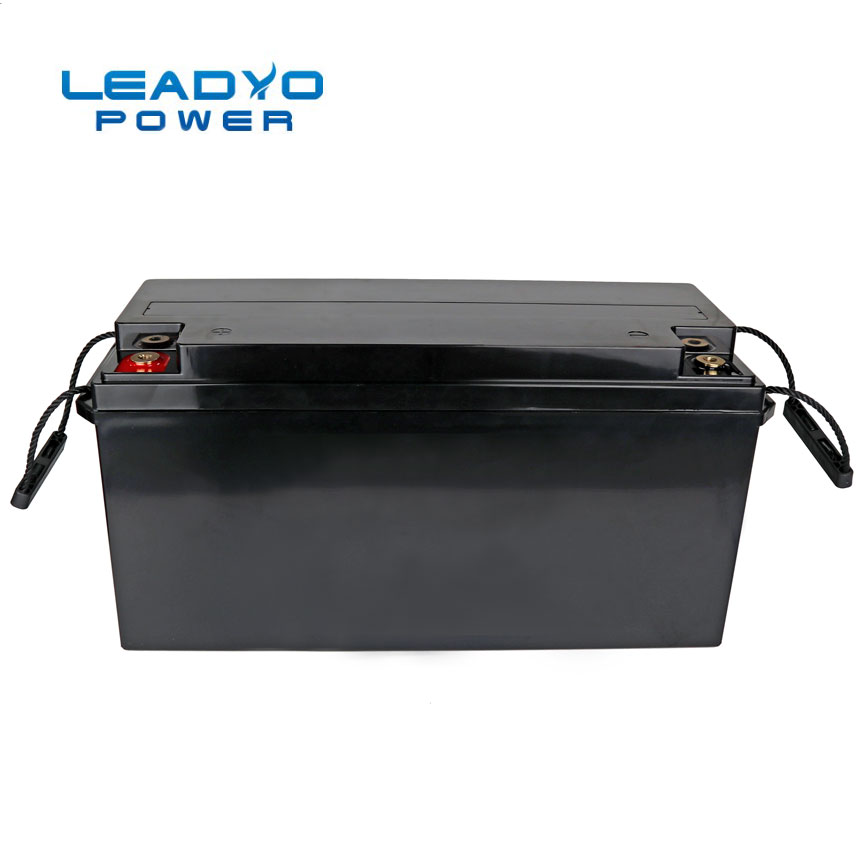

LiFePO4 75Ah 24V Lithium Ion Rechargeable Battery For Solar Power Battery System

LiFePO4 Power 24V 75Ah lithium rechargeable battery for solar power battery system

Features:

1-32S max 250A constant current for lithium battery pack.
The Main IC are grade A from TI, Seiko, Ricoh, O2Micro OZ and Maxim. Mosfets from IR,ST, AO .etc .
Smart BMS can be with Bluetooth,SMBus,HDQ,I2C,RS232,RS485 commnication.
Can make series up to 48V,parallel no limit.
All the BMS and PCM has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Built in heat sink With powerful cooling performance,
Support high current 500-800A Short circuit protection

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	25.6V	Terminal Type	M6
Nominal Capacity	75Ah	Weight	19kg
Nominal Energy	1920Wh	Case Dimension(LWH)	480168240mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@15A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	2PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	100A
Peak Current	300A	Recommended Charge Current	15A - 40A
Discharge pulse current	500±50A (31±10ms)	End of Charge voltage	28.8V±0.2V
BMS Low Voltge Cut-off	20V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

1. Are you factory or trade company?We ara leading battery manufacturer in China,Is a high-tech
enterprise, specializing in R&D and marketing of Lithium
rechargeable battery products.

2.What is your main product?
12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
* 12V 24V LiFePO4 Batteries for RV/ Marine application
* 12V Automatic Start-Stop LiFePO4 Battery
* 48V Golf carts Batteries
* Solar street light system
* 12V / 24V Floor machine batteries.
* Other solar power battery system
* 1-32S Max 250A BMS/PCM
* battery charger
* Lithium ion cells, LiFePo4 cells and LTO cells

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based
on exact order quantity and schedule.

5.Do you accept OEM?
OEM and ODM both available
