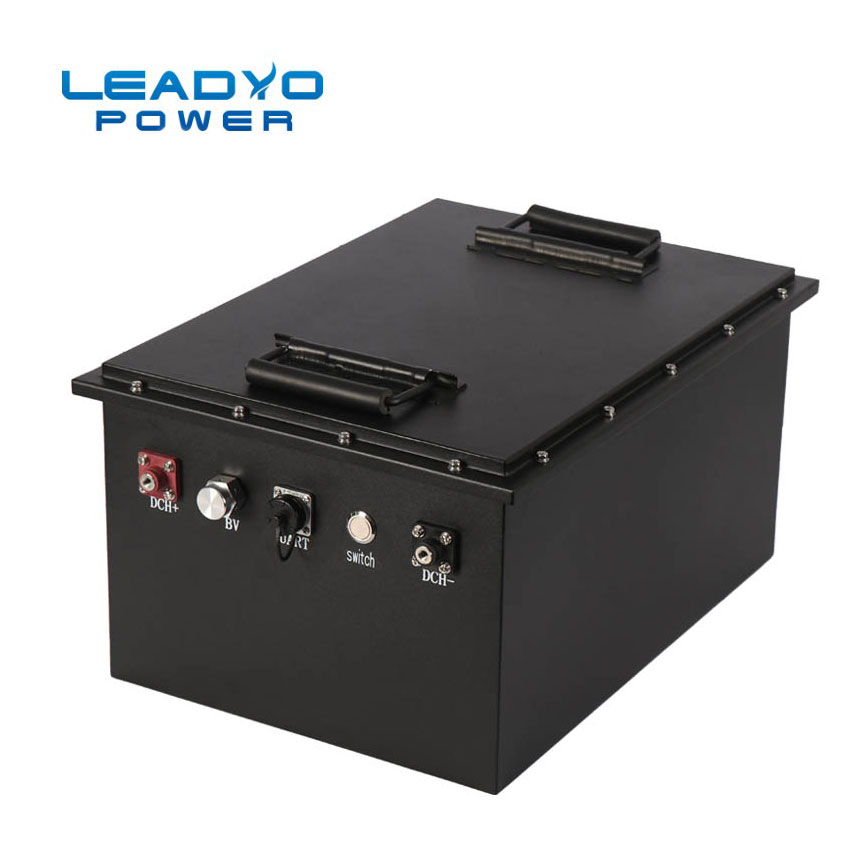

300Ah 24V Lifepo4 Battery Built In LCD Monitoring Systems For Solar Application

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP24V300
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

300Ah 24V Lifepo4 Battery Built In LCD Monitoring Systems For Solar Application

24V 300Ah LiFePO4 battery built in LCD monitoring systems for solar application

Lithium Iron Phosphate Battery 24V 300Ah

Nominal Voltage 25.6V

Nominal Capacity 300 Ah

Capacity @ 60A 300 min

Energy 7680 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

Features:

Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
Free of charge memory
Steady discharge and charge performance.
Outstanding thermal stability
Wide temperature performance
Short circuit protection
Over charge and over discharge protection
Over current protection

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	25.6V	Terminal Type	M8
Nominal Capacity	300Ah	Weight	65kg
Nominal Energy	7680Wh	Case Dimension(LWH)	705305260mm
Internal Resistance	≤30 @50% SOC	Case Type	Metal case
Capacity	@40A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	2PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	200A	Max Charge Current	200A
Peak Current	500A	Recommended Charge Current	60A - 150A
Discharge pulse current	700±50A (31±10ms)	End of Charge voltage	28.8V±0.2V
BMS Low Voltge Cut-off	20V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2.What is your main product?
* 12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
* 12V Automatic Start-Stop LiFePO4 Battery
* 1-32S Max 250A BMS/PCM
* battery charger
* Lithium ion cells, LiFePo4 cells and LTO cells

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM?

OEM and ODM both available
