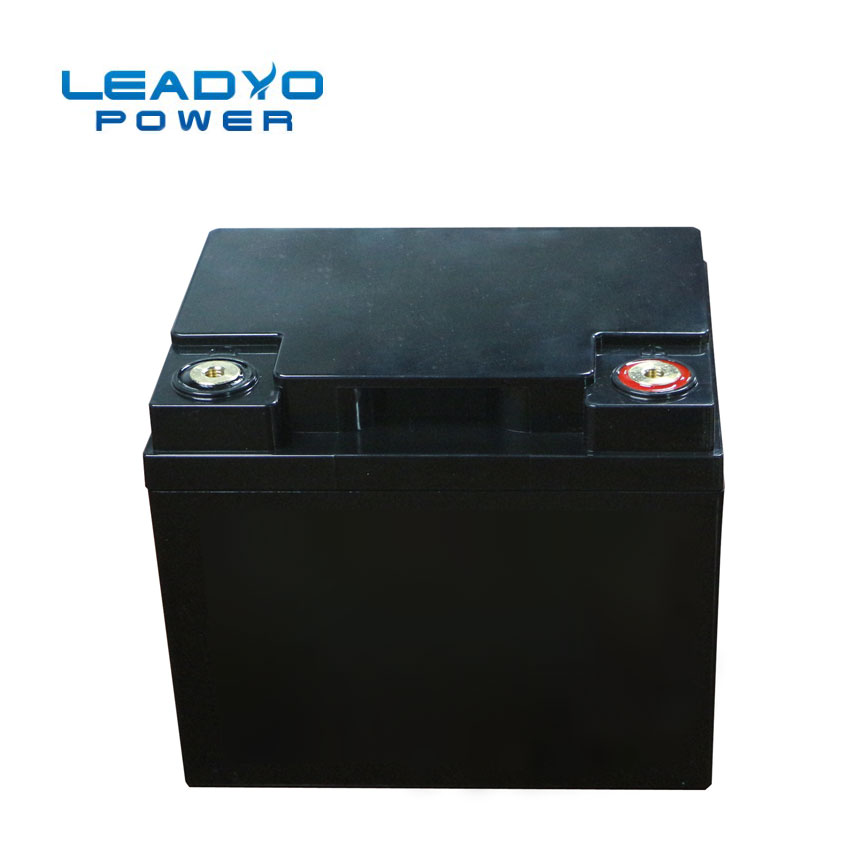

Screwable Case 12V 50Ah Lifepo4 Battery With Bluetooth 197x166x168mm

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V050
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

Screwable Case 12V 50Ah Lifepo4 Battery With Bluetooth 197x166x168mm

12V 50Ah Sealed Lead Acid Battery lifepo4 battery 50ah With Bluetooth

Lithium Iron Phosphate Battery 12.8V 50Ah

Nominal Voltage 12.8V 50Ah

Capacity @ 10A 300 min

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

Bluetooth features:

The built in Bluetooth feature enables the monitoring of each battery State-of-Charge (SoC) via a Smartphone APP. The APP displays the Amps currently charging or discharging from the battery at a point in time, the voltage of the battery, SOC %, the temperature of the battery, the time to full charge, the time to full discharge and the number of charge/discharge cycles the battery has incurred.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M6
Nominal Capacity	50Ah	Weight	6.8kg
Nominal Energy	640Wh	Case Dimension(LWH)	197166168mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@25A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	50A	Max Charge Current	50A
Peak Current	150A	Recommended Charge Current	10A - 20A
Discharge pulse current	180±30A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

Q1: Does Leadyo support door to door shipping?
A1: Yes. Normally if battery unit weight is below 30kg, we can delivery it to the destination address via Air Express. If battery unit weight is above 30kg, we delivery it via sea shipping. If you want to us to help you to make custom clearance, we would like to do that.

Q2.: Can we do series and parallel connection by ourselves (12 volt battery)?
A2.: Yes. But, we should pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series OR max 20 parallel connection. Please don't do series and parallel connection at the same time.
d. If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.

Q3.: How can I resell lithium batteries well in my market ?
A3.: Do market research, set your focus application field,learn more knowledge about lithium battery. build your own brand. We can work together with you to explode the market.

Q6. What is your warranty?
A6: Our standard warranty is 2 years. Our battery lifespan can be used for at least 8 years for normal 1 cycles per day. We have a complete warranty policy documents, please feel free to contact us to get it.
......
