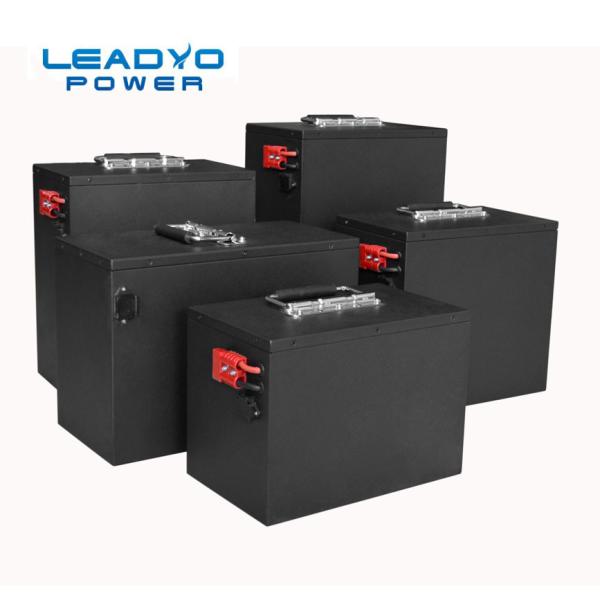

Deep Cycle Bluetooth Lithium Battery BMS 12V 200ah Lifepo4 Battery

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V200
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

Deep Cycle Bluetooth Lithium Battery BMS 12V 200ah Lifepo4 Battery

Bluetooth Deep Cycle Lithium Ion Battery 12V 200Ah BMS LiFePO4 Batteries

Lithium Iron Phosphate Battery 12.8V/200Ah

Nominal Voltage 12.8 V

Nominal Capacity 200 Ah

Capacity @ 40A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Features

We have customzied case with screws sealed for 12V 100Ah,120Ah,150Ah,200Ah deep cycle battery.
Our Battery Packs with Our Custom-Made BMS Built in brand Chips (Texas structure/Seiko) is designed for the our battery packs ,and Together with our class a batteries (China Leading brand Cells ), we ensure that you have the good quality and competitive price solution.
Our 12V series battery pack support 4pcs in series ,and unlimited in parallel .
our BMS has the short circuit function ,when user connect Pos and Neg together without damaging the cells and bms .
We can provide UN certificates with your company information.
With your label on battery for free.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	200Ah	Weight	21kg
Nominal Energy	2560Wh	Case Dimension(LWH)	350312190mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@40A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	150A
Peak Current	500A	Recommended Charge Current	40A - 100A
Discharge pulse current	700±5A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2.What is your main product?

12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
1-32S Max 250A BMS/PCM
battery charger
Lithium ion cells, LiFePo4 cells and LTO cells

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , 20-35days for bulk order

5.Do you accept OEM?

Yes OEM and ODM both available, and can with your logo on the battery.
