12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V200
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

12V 200Ah Marine Deep Cycle Lithium Battery With High-Performance BMS

Lithium battery 12v 100ah 200Ah lithium deep cycle marine battery

Lithium Iron Phosphate Battery (12.8V / 200Ah)

Nominal Voltage 12.8 V

Nominal Capacity 200 Ah

Capacity @ 40A 300 min

Energy 2560 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	200Ah	Weight	21kg

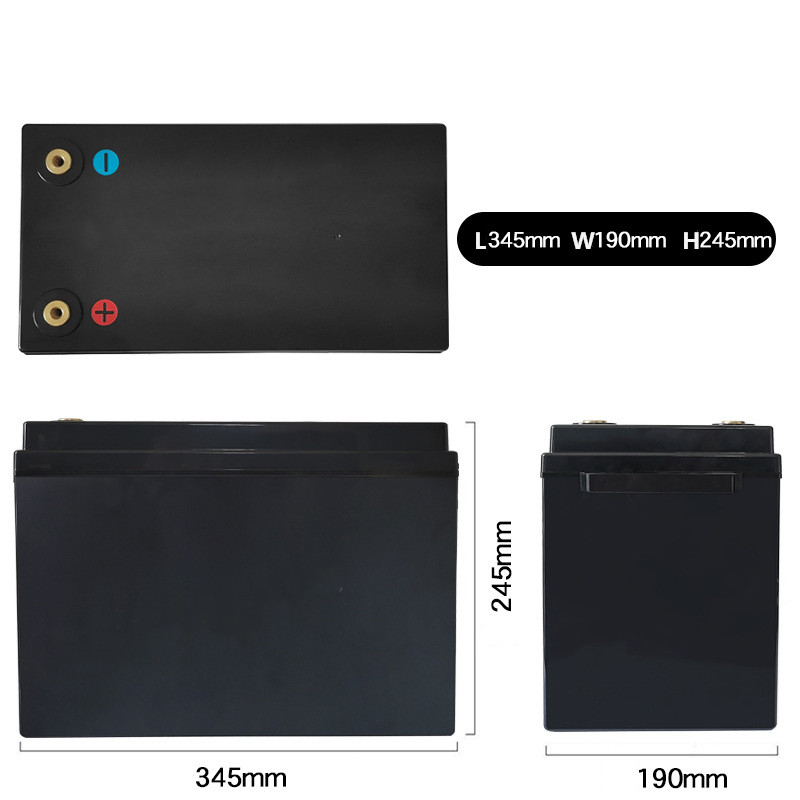

Nominal Energy	2560Wh	Case Dimension(LWH)	345190245mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@40A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	150A
Peak Current	500A	Recommended Charge Current	40A - 100A
Discharge pulse current	600±50A (31±10ms)	End of Charge voltage	28.8V±0.2V
BMS Low Voltge Cut-off	10V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.Main use in Marine, RV,camping,Electric-fence, led light and other Solar/Wind Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike, robot,power tooling, UPS, Medical and Military Equipment etc.

2.How to get a quote?
Please contact with us sales5@leadyo-battery.com or Phone/whatsapp:+ 8618825284421

3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

4.Do you accept OEM and ODM?

Yes sure, can customized your logo and design battery according to your requirements.
