Lifepo4 100ah Slim Lithium Battery 12V 65mm Thickness For Camper RV Marine

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

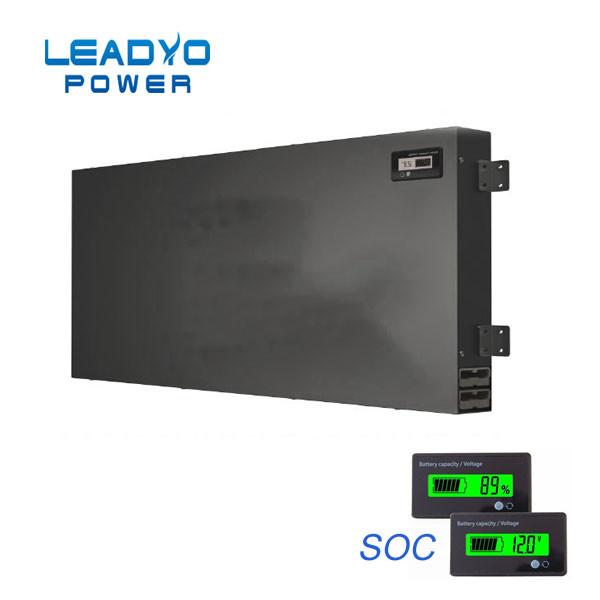

Lifepo4 100ah Slim Lithium Battery 12V 65mm Thickness For Camper RV Marine

Slim Battery lifepo4 12V 100AH 65mm thickness for camper RV Marine

Super Slim 65mm thickness 12V 100Ah lifepo4 battery pack with LCD display
Charging voltage : 14.4-14.6V
Discharge current: 100A continuous
Charging current : 50-100A
Pluse current 300A/10s

Size : 600(L) x 65(W) x 275(H) mm
LCD display : SOC , Voltage, Temperature
Cycle life : more than 2000 times at DOD 100%
Color : Blue , White , Black or custom .

Anderson 50A*2

With 4*2pcs Screw fixing hole
Metal case can be customized as your requirements .

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	100Ah	Weight	13kg
Nominal Energy	1280Wh	Case Dimension(LWH)	600(L) x 65(W) x 275(H) mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@20A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4 PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	150A	Max Charge Current	100A
Peak Current	500A	Recommended Charge Current	20A - 50A
Discharge pulse current	700±30A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

FAQ

Q: Are you trading company or manufacturer?
A: We are original factory.

Q: Can I have samples to test? And what is lead time for sample
order?
A: Yes,we can supply samples,the leadtime for samples is 3-5
days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 24 months, if any quality problems on our
side in this period, we can send new one as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real
capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order
quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better
price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on.
