12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery

    Buy cheap 12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery from wholesalers

    Buy cheap 12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery from wholesalers
    • Buy cheap 12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery from wholesalers
    • Buy cheap 12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery from wholesalers
    • Buy cheap 12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery from wholesalers

    12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery

    Ask Lasest Price
    Brand Name : LEADYO
    Model Number : LP12V100-SL
    Certification : UN38.3, CE,MSDS,UKCA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
    Supply Ability : 60Mwh
    Delivery Time : 15-45 Days
    • Product Details
    • Company Profile

    12V 100Ah-200Ah Slimline Lithium Battery IP66 Lifepo4 Lithium Ion Battery

    12V 100Ah 200Ah Slimline Lithium Battery lifepo4 lithium ion battery


    • 12V Slimline liFePO4 battery for caravan, camping, 4WD, dual battery systems.
    • Our Slimline batteries have been designed to go where no other battery can go. Great for your 4X4 vehicle,Caravan,camper-van and they're even suitable for marine use. the slimline batteries are buit to last, with a completely sealed and robust ABS container making these batteries an outback proof product.

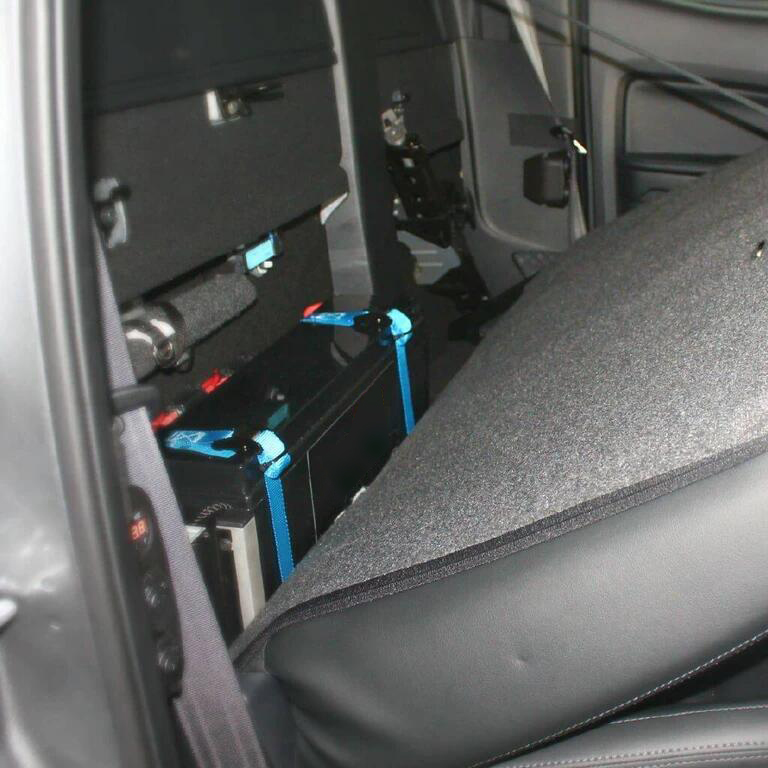

    • The Slim 110mm width construction means your battery can easily fit into areas that otherwise would have been impossible, Combine with a 50-200Ah slim battery tray for easy installation behind the rear seat of dual cab utes

    ELECTRICAL SPECIFICATIONSMECHANICAL SPECIFICATIONS
    Nominal Voltage12.8VTerminal TypeM8
    Nominal Capacity100AhWeight13kg
    Nominal Energy1280WhCase Dimension(L*W*H)395*110*262mm
    Internal Resistance≤30 @50% SOCCase TypeABS
    Capacity@20A: 300minutes(5hours)Cell type / ChemistryLiFePO4
    Self Discharge5% /per monthLCD or Bluetooth FunctionOptional
    Maximum In Series4 PCSBMS:low voltage,high voltage,over temperature,
    Maximum In ParallelNo limitOver current,short-circuit protection .etc
    Discharge Current and Voltage SpecificationsCharge Current and Voltage Specifications
    MAX Continuous Discharge Current150AMax Charge Current100A
    Peak Current500ARecommended Charge Current20A - 50A
    Discharge pulse current700±30A (31±10ms)End of Charge voltage14.4V±0.2V
    BMS Low Voltge Cut-off10VEnd of discharge voltage10V
    Short Circuit Protection200-800 µs Auto recover or charge releaseBalancing Voltage3.6V±0.05v pc
    Temperature RangesCOMPLIANCE SPECIFICATIONS
    Discharge Temperature-20+65CertificationsCE for Battery Pack
    Charge Temperature-20+45UL1642 & IEC62133 for cells
    Storage Temperature Range-20+45
    BMS High Temperature Protection90Shipping classificationUN 3480
    Battery High Temperature Protection60


    FAQ


    1. Are you factory or trade company?
    We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

    2.What is your main product?

    1-32S Lithium PCM BMS board with max 250A continuous discharge current;
    Deep cycle lithium batteries, 12V LiFepo4 3-1000Ah, with equal KWH for 3v...24V 36v 48V...up to 96V LiFepo4 optional;
    Custom Battery Packs
    Starter LiFepo4 12V 40Ah 60Ah 80Ah 100Ah -1200CCA
    Advantage cells: NMC/lifepo4/LTO cell
    Lithium battery charger

    3.How to get a quote?
    Please contact with us sales5@leadyo-battery.com

    4.When you delivery order?
    Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

    5.Do you accept OEM?
    OEM and ODM both available
