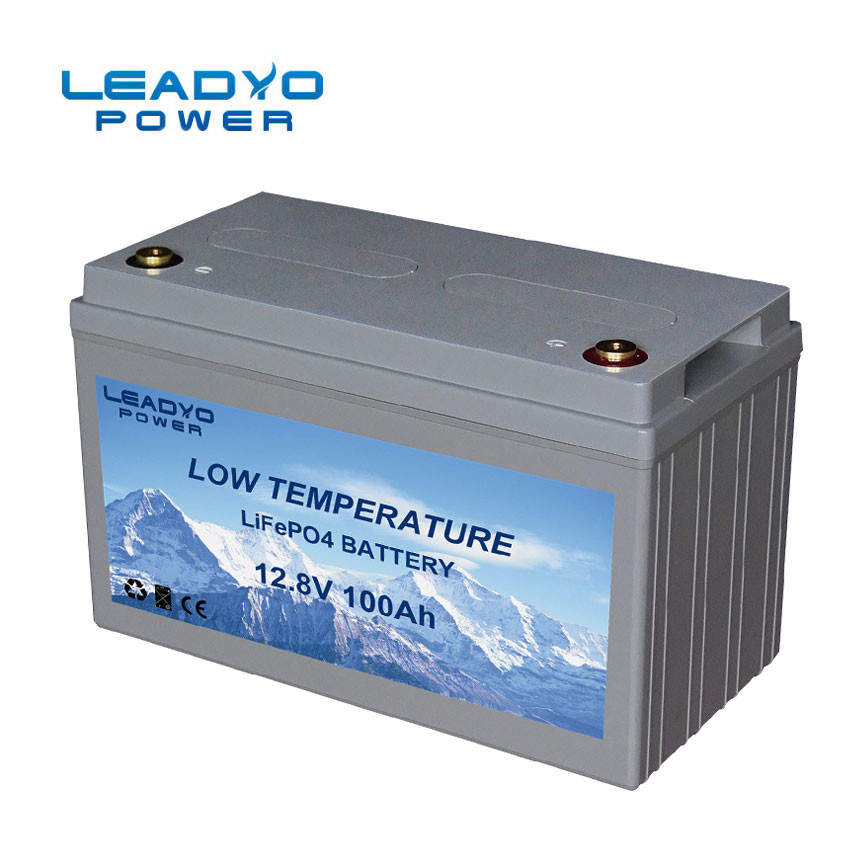

ABS Case 100Ah Low Temperature LiFePO4 Battery Auto Heating Balancing Function

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

ABS Case 100Ah Low Temperature LiFePO4 Battery Auto Heating Balancing Function

12V 100Ah 200Ah Low Tempearature Lithium Ion Battery LifePO4 batteries

Lithium Iron Phosphate Battery 12V 100Ah

Nominal Voltage 12.8V

Nominal Capacity 100 Ah

Capacity @ 20A 300 min

Energy 1280Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

Whats the heating battery pack and how to heat ?

LiFePO4 LT batteries have a built-in heating system featuring proprietary technology that draws power from the charger itself. No additional components are required. The entire process of heating and charging is completely seamless. The heating system automatically activates once charging below 0°C is attempted, and it automatically deactivates when it’s no longer needed. The heating system does not take power from the battery, but rather from the charger, ensuring the battery is not discharging itself. Simply plug the battery into the lithium charger and the internal heating and monitoring systems take care of the rest.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	100Ah	Weight	13kg
Nominal Energy	1280Wh	Case Dimension(LWH)	330175210mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@20A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	100A
Peak Current	300A	Recommended Charge Current	20A - 50A
Discharge pulse current	350±30A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

ABS Case 100Ah Low Temperature LiFePO4 Battery Auto Heating Balancing Function

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2.The Low temperature can with Bluetooth?

Yes we have two version of the low temperature LiFePO4 Battery, Bluetooth Version and non-Bluetooth Version.

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you have low temperature cut off LiFePO4 battery

Yes,We have, please contatc with our sales engineers know more about details sales5@leadyo-battery.com / whatsapp + 8618825284421
