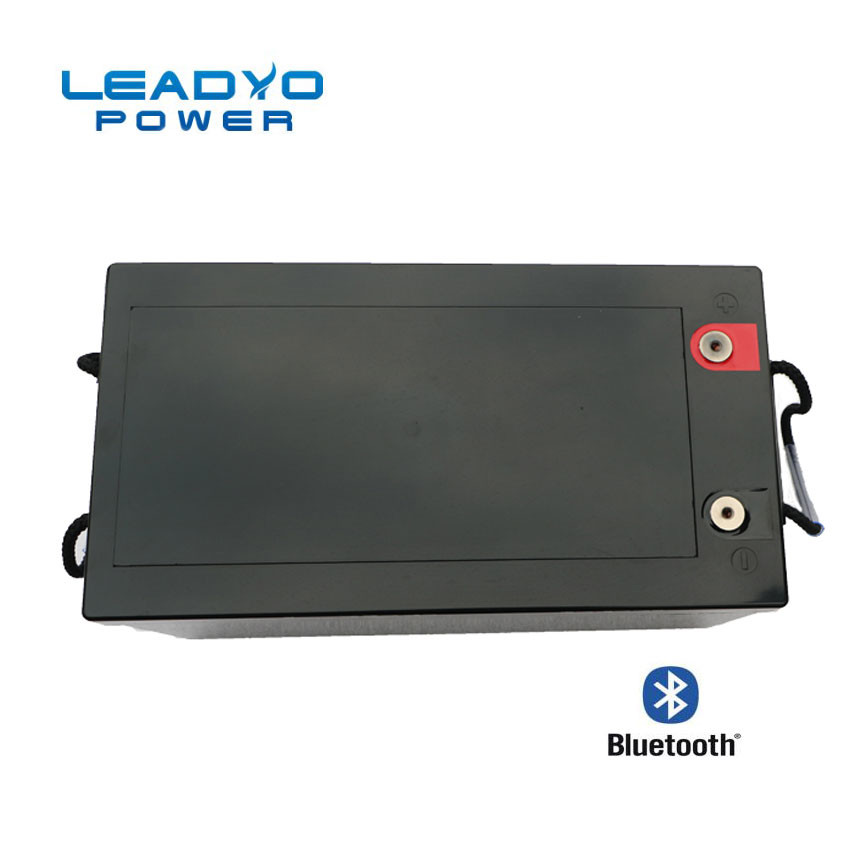

IP66 Waterproof 36V Marine Lifepo4 Batteries 100ah Lithium Ion Battery Pack With BMS

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP36V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

IP66 Waterproof 36V Marine Lifepo4 Batteries 100ah Lithium Ion Battery Pack With BMS

IP66 Waterproof Lithium Ion Battery Pack 36v Marine Lifepo4 Batteries 100ah

Lithium Iron Phosphate Battery 36V 100Ah

Nominal Voltage 38.4 V

Nominal Capacity 100 Ah

Capacity @ 20A 300 min

Energy 3840 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Features

Bluetooth App available to monitor cell voltage, cycles, discharge current, temperature and so on.

With light weight only 36kg

Built in smart BMS with full safety protection

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	38.4V	Terminal Type	M8
Nominal Capacity	100Ah	Weight	36kg
Nominal Energy	3840Wh	Case Dimension(LWH)	525234220mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@20A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	NO	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	150A
Peak Current	300A	Recommended Charge Current	20A - 50A
Discharge pulse current	500±100A (31±10ms)	End of Charge voltage	43.2V±0.2V
BMS Low Voltge Cut-off	30V (2.0V±0.05v) pc)	Balancing current	Auto start
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

IP66 Waterproof 36V Marine Lifepo4 Batteries 100ah Lithium Ion Battery Pack With BMS

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.Main use in Marine, RV,camping,Electric-fence, led light and other Solar/Wind Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike, robot,power tooling, UPS, Medical and Military Equipment etc.

2.What is your main product?

12V-48V LiFePO4 Batteries (To Replace lead acid batteries)
12V 24V Automatic Start-Stop LiFePO4 Battery
1-32S Max 250A BMS/PCM
battery charger
Lithium ion cells, LiFePo4 cells and LTO cells

3.How to get a quote?
Please contact with us sales5@leadyo-battery.com or Phone/whatsapp:+ 8618825284421

4.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5.Do you accept OEM and ODM?

Yes sure, can customized your logo and design battery according to your requirements.
