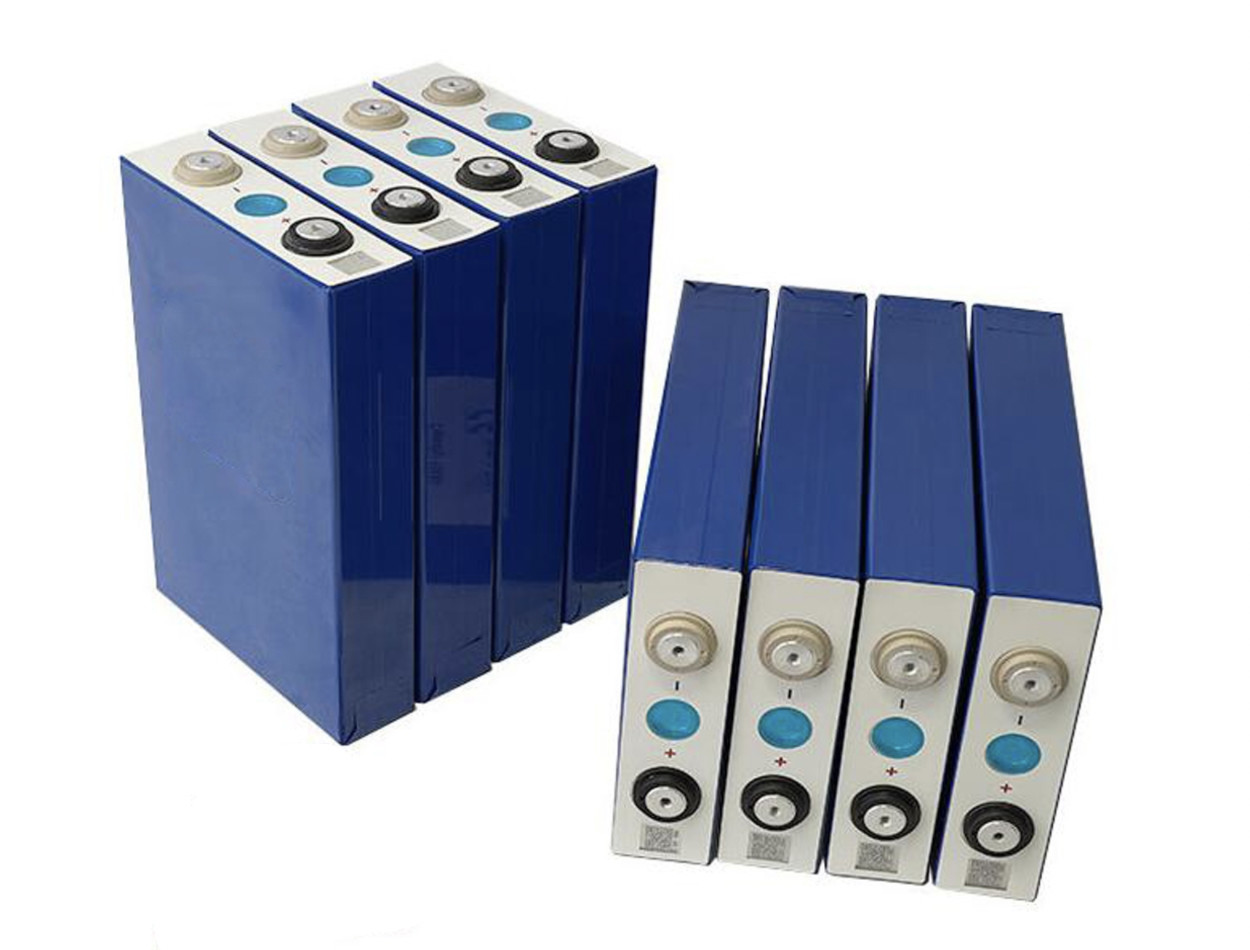

    3.2V 80Ah LiFePO4 Rechargeable Battery Cell For EV

    3.2V 80Ah LiFePO4 Battery Rechargeable Lithium Phosphate Battery Cell For EV


    Technical Parameters:


    No.ItemsSpecifications
    1Nominal Voltage3.2V
    2Nominal Capacity80AH
    3Standard Charge Current0.2C-0.5C
    4Max. Charge Current1C
    5Continuous Discharge current80A (1C rate)
    6Peak Discharge Current2C(160A)
    7Charge Cut-off Voltage3.65V
    8Discharge Cut-off Voltage2.0V
    9

    Inner Resistance

    (Impedance)

    ≤ 0.2mΩ-0.5mΩ (At 0.2C rate, 2.0V cut-off)
    10Weight1.5Kg
    11Dimensions

    Length: 170mm

    Width: 37mm

    High: 130m

    12Operating Temperature

    Charging: 0°C ~ 45°C

    Discharging: -20°C ~ 60°C

    (The cell surface temperature cannot exceed 70°C)

    13Storage Temperature/Humidity

    Temperature: -10°C ~ +35°C

    Humidity:65%±20%RH

    (optimal store temperature of 22 ± 5°C for long term storage)

    14Cycle Life≥3000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)

    3.2V20Ahsize:22*65*146mm discharge /charge current :1C
    3.2V50Ahsize :27*148*115mm. discharge /charge current :1C
    3.2V90Ahsize :27*148*115mm. discharge /charge current :1C
    3.2V105Ahsize: 36*130*196mm. discharge/charge current : 1C.
    3.2V200Ahsize: 53.7*173.8*207.5. discharge/charge current : 1C.
    3.2V280Ahsize:72*173.6*204.8mm. discharge/charge current : 1C

    More batteries ,please contact us . thanks .
