100Ah 200A Deep Cycle 12V LiFePO4 Battery Pack With ABS Case

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

100Ah 200A Deep Cycle 12V LiFePO4 Battery Pack With ABS Case

12 volt 100Ah 200A high current deep cycle 12V lifepo4 iron phosphate RV Marine Camping battery pack

We can provide you:

We can provide OEM service to you,free customized your logo label.

Optional Smart Bluetooth BMS,Bluetooth APP to know the status of the battery,BMS&APP are developed by ourselves.

Support custom APP with your logo.

Hot selling products 12V 10Ah to 600Ah,24V 50Ah,100Ah,200Ah,and 48V 50Ah,100Ah.
We have passed CE,MSDS,UN38.3,and SGS Quality System Certification.
Supporting in series and in parallel connection.
NO MOQ,Fast Delivery.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M8
Nominal Capacity	100Ah	Weight	10.5kg
Nominal Energy	1280Wh	Case Dimension(LWH)	330175210mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@20A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	200A	Max Charge Current	200A
Peak Current	500A	Recommended Charge Current	20A - 50A
Discharge pulse current	700±50A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

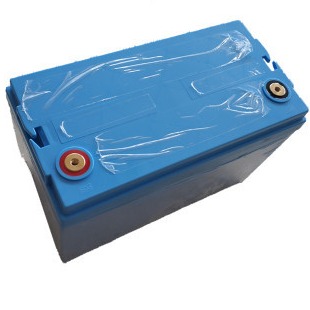

Multiple case color for optional:

100Ah 200A Deep Cycle 12V LiFePO4 Battery Pack With ABS Case

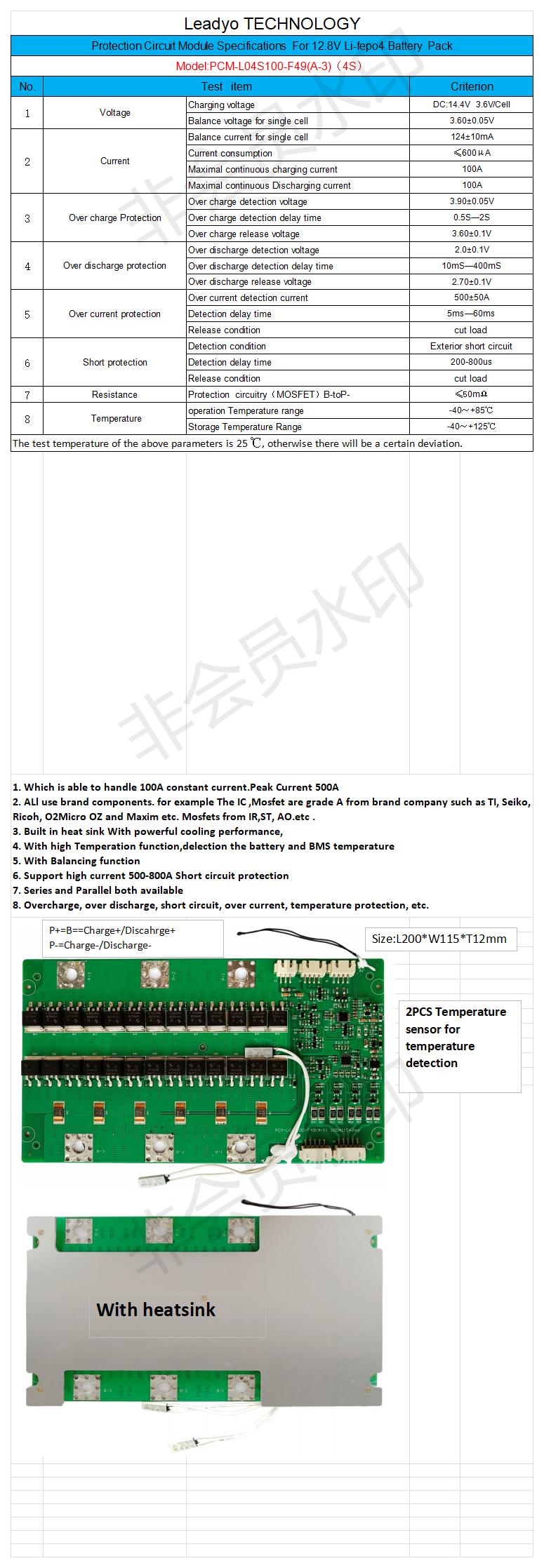

BMS Specs with multiple protections to prevent cells from over charge/over discharge ,over temperature .etc .

FAQ

1. Are you factory or trade company?
This is Hedy from Leadyo which is leading Battery Manufacturer in
China over 15 years
2. What is your main product?
Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
Start-stop LiFepo4 12V 200CCA-1600CCA
1-32S Lithium PCM/BMS max 250A
4NMC/LFP/LTO cells
3. How to get a quote?
Please contact with us sales engineer and get good price
sales5@leadyo-battery.com/wechatwhatsapp :86 18825284421
4. When you delivery order?
Normally 7-10 days for samples order , it can be negotiated based
on exact order quantity and schedule.
5. Do you accept OEM?
Yes sure, strong RD department and can customized battery according
to your requirmenets
