Bluetooth LiFePO4 lithium Iron Phosphate Battery 12V 100Ah With BMS

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V100
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

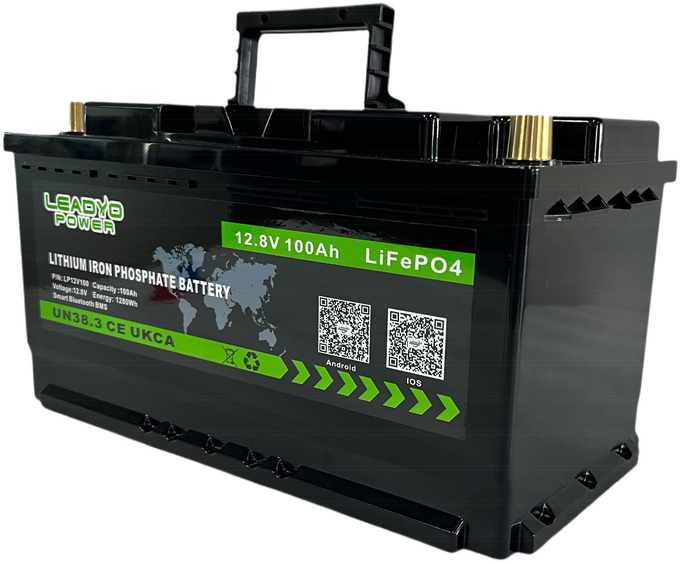

Bluetooth LiFePO4 lithium Iron Phosphate Battery 12V 100Ah With BMS

L5 12V 100Ah 100amp LiFePO4 Iron Phosphate Smart Bluetooth Battery With BMS ABS Case

Lithium Iron Phosphate Battery 12V 100Ah

Nominal Voltage 12.8V

Nominal Capacity 100 Ah

Capacity @ 25A 240 min

Energy 1280Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.

Features:

Sealed LiFePO4 Battery 12.8V 100Ah with full internal protective Battery Management System.
BLUETOOTH PHONE INTERFACE for displaying battery information on your phone!These batteries can also be connected ten in parallel to increased the Amphours or four in series to make 48V.

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	Round*2
Nominal Capacity	100Ah	Weight	10.5g
Nominal Energy	1280Wh	Case Dimension(LWH)	355170190mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@25A: 240minutes(4hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series and Parallel	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	100A	Max Charge Current	100A
Peak Current	500A	Recommended Charge Current	25A - 60A
Discharge pulse current	700±50A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

Bluetooth LiFePO4 lithium Iron Phosphate Battery 12V 100Ah With BMS

FAQ

1. Are you factory or trade company?

We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.

2. Can we have our company APP?
Sure ,can customized your logo and company information on the APP. more information can contact with our sales engineer sales5@leadyo-battery.com /whatsapp : +86 18825284421

3. What's BMS used of your battery?
We are one stop solution manufacturer,we use our self-developed custom -made BMS ,Our BMS Technology (powered by Texas structure US or Seiko Japan) is designed for our battery.

4. When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

5. Do you accept OEM?

OEM and ODM both available
