Lifepo4 Deep Cycle Batteries , ABS Case 12V 20ah Rechargeable Lithium Batteries

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V20
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

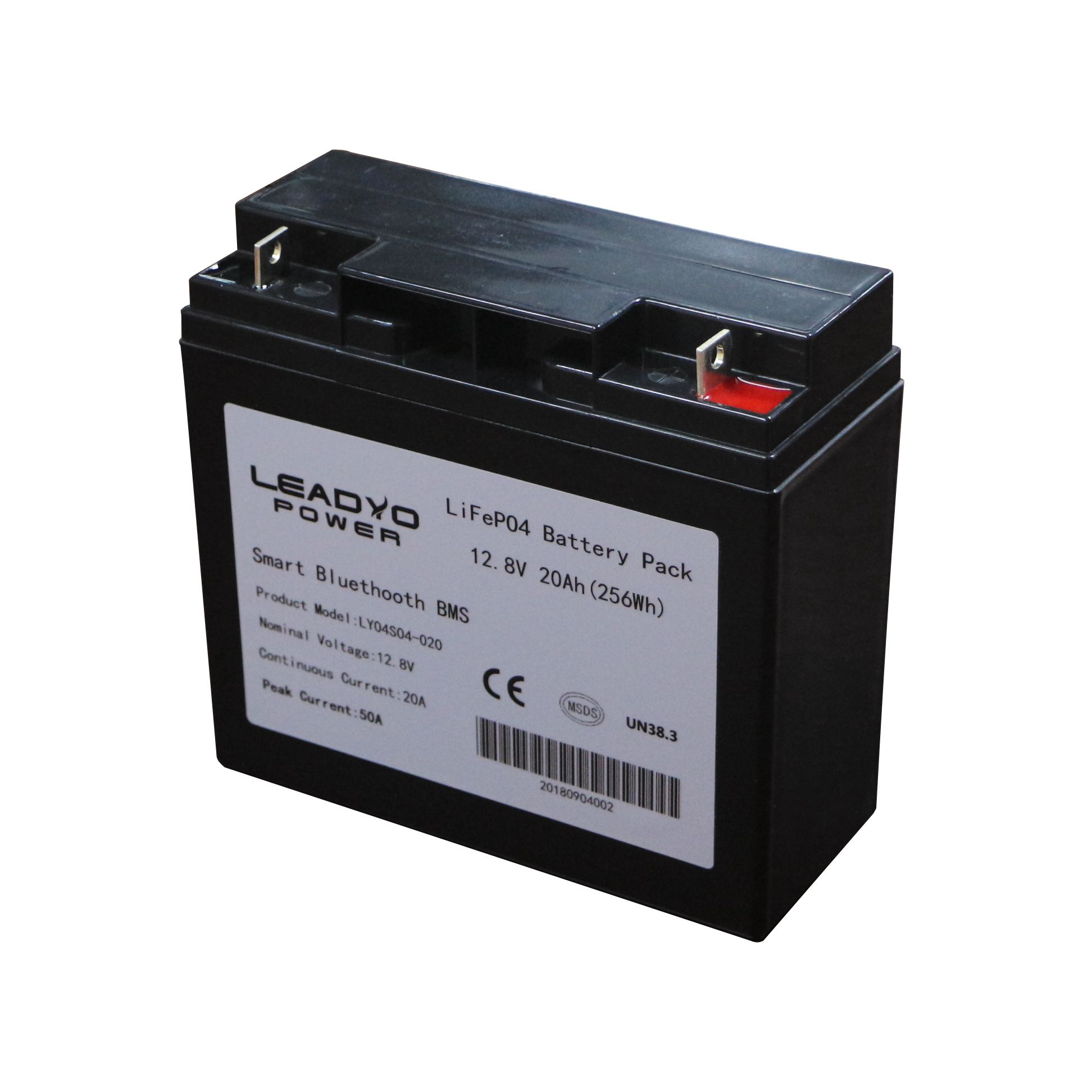

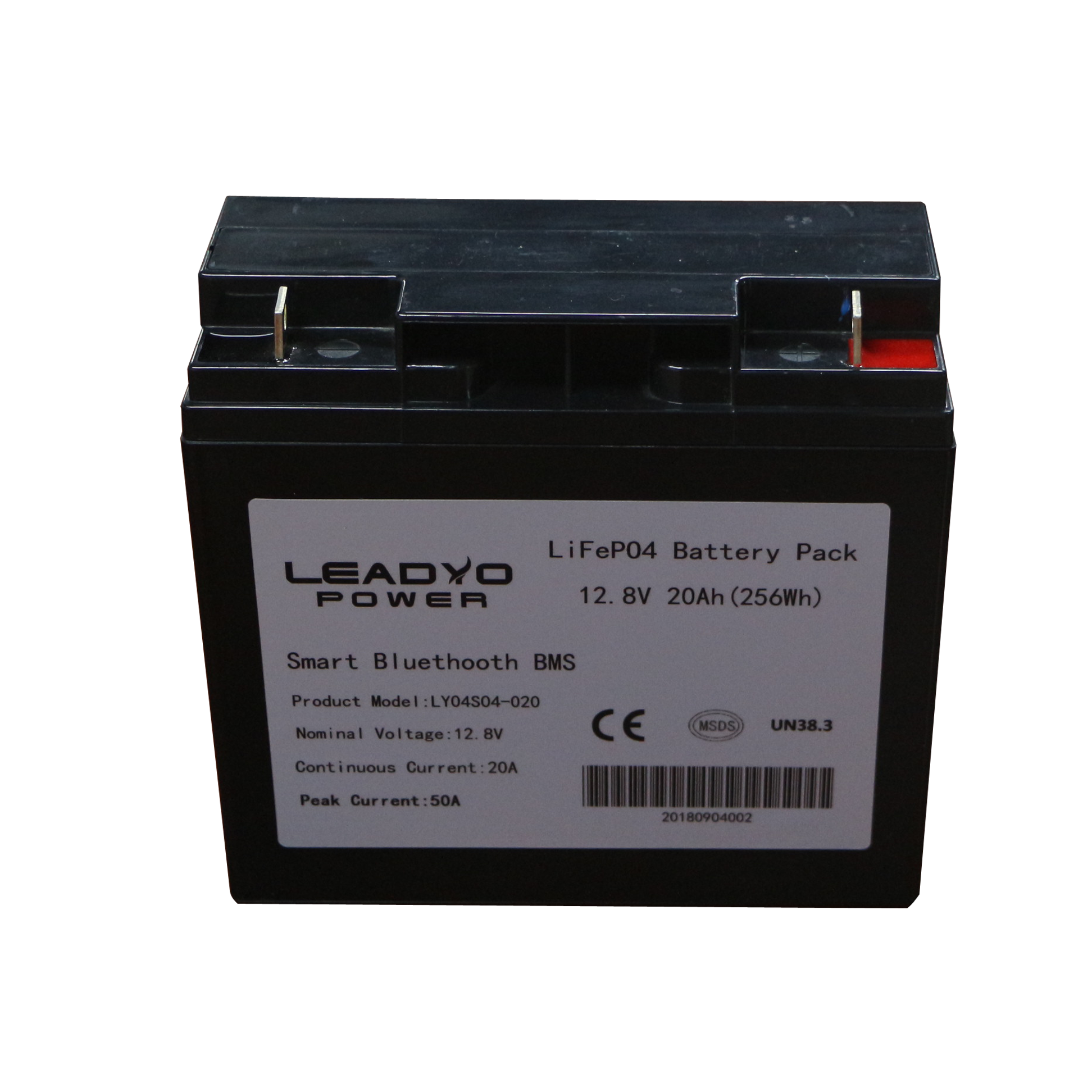

Lifepo4 Deep Cycle Batteries , ABS Case 12V 20ah Rechargeable Lithium Batteries

rechargeable lifepo4 deep cycle batteries ABS Case 12V 20ah lithium batteries

Our advantage:

Research and development,Design and manufactur for lithium batteries.
Custom-made BMS can be with Bluetooth,RS232,RS485,UART,SMbus,I2C,HDQ etc
UN, UL & IEC testing and certification
Large engineering department and testing lab
State-of-the-art 86,000 ft2 production facility
SmarTEC is an ISO 9001 certified, and an new and high-tech enterprise

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	T3
Nominal Capacity	20Ah	Weight	2.5kg
Nominal Energy	256Wh	Case Dimension(LWH)	18077170mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@4A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	20A	Max Charge Current	20A
Peak Current	40A	Recommended Charge Current	4A - 10A
Discharge pulse current	50±5A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 & BIS for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 & BIS for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
