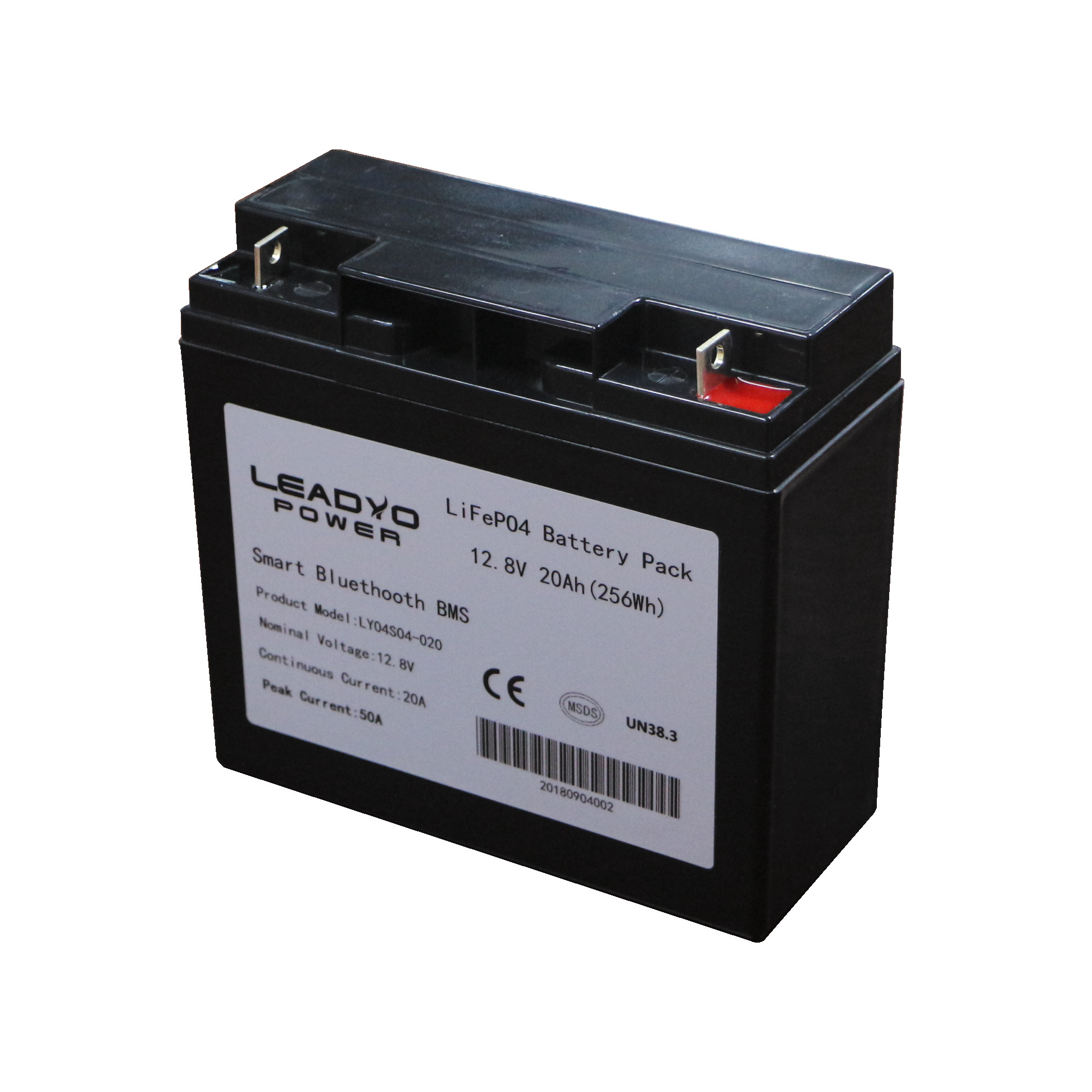

12V LiFePO4 12.8V Lithium Battery For Electric 3-Wheels Trike Battery Replacement

Ask Lasest Price
Brand Name :	LEADYO
Model Number :	LP12V020
Certification :	UN38.3, CE,MSDS,UKCA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online
Supply Ability :	60Mwh
Delivery Time :	15-45 Days

Add to Cart

Product Details
Company Profile

12V LiFePO4 12.8V Lithium Battery For Electric 3-Wheels Trike Battery Replacement

12V LiFePO4 12.8V Lithium Battery For Electric 3-Wheels Trike Battery Replacement

ELECTRICAL SPECIFICATIONS		MECHANICAL SPECIFICATIONS
Nominal Voltage	12.8V	Terminal Type	M6 or T3
Nominal Capacity	20Ah	Weight	6.8kg
Nominal Energy	256Wh	Case Dimension(LWH)	18177170mm
Internal Resistance	≤30 @50% SOC	Case Type	ABS
Capacity	@25A: 300minutes(5hours)	Cell type / Chemistry	LiFePO4
Self Discharge	5% /per month	LCD or Bluetooth Function	Optional
Maximum In Series	4PCS	BMS:low voltage,high voltage,over temperature,
Maximum In Parallel	No limit	Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications		Charge Current and Voltage Specifications
MAX Continuous Discharge Current	30A	Max Charge Current	20A
Peak Current	70A	Recommended Charge Current	5A - 10A
Discharge pulse current	180±30A (31±10ms)	End of Charge voltage	14.4V±0.2V
BMS Low Voltge Cut-off	10V	End of discharge voltage	10V
Short Circuit Protection	200-800 µs Auto recover or charge release	Balancing Voltage	3.6V±0.05v pc
Temperature Ranges		COMPLIANCE SPECIFICATIONS
Discharge Temperature	-20～+65℃	Certifications	CE for Battery Pack
Charge Temperature	-20～+45℃		UL1642 & IEC62133 for cells
Storage Temperature Range	-20～+45℃		UL1642 & IEC62133 for cells
BMS High Temperature Protection	90℃	Shipping classification	UN 3480
Battery High Temperature Protection	60℃

12V LiFePO4 12.8V Lithium Battery For Electric 3-Wheels Trike Battery Replacement

Table: Key Features of 12V 20Ah LiFePO4 Battery for Electric Trikes

Category	Technical Specs	Core Advantages	Customer Benefits
Chemistry	Lithium Iron Phosphate (LiFePO4)	Non-flammable, no memory effect	Safer than lead-acid; flexible charging
Voltage	Nominal: 12V / Full Charge: 12.8V	Perfect fit for 12V trike systems	No need to modify controllers or wiring
Capacity	20Ah (256Wh)	High energy density (140Wh/kg)	20% longer range than lead-acid batteries
Cycle Life	5000+ cycles (80% DOD)	5× longer lifespan than lead-acid (300 cycles)	Save $200+ on battery replacements over 5 years
Weight	2.8kg	77% lighter than lead-acid (12kg)	Improve trike efficiency and reduce fatigue
BMS Protection	8-in-1 smart BMS	Overcharge/overdischarge/ overcurrent protection	0% risk of battery damage from improper use
Waterproof Rating	IP67	Submersible in 1m water for 30 minutes	Safe for rainy days and harsh environments
Operating Temp	-20°C to 60°C	85% capacity retention at -10°C	Reliable in extreme climates (e.g., Alaska, Texas)
Compatibility	Fits 90% of electric trikes	3 standard sizes + custom options	Plug-and-play installation
Warranty	3-year	Industry-leading coverage

RFQ

Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;

Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement

Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;

12V LiFePO4 12.8V Lithium Battery For Electric 3-Wheels Trike Battery Replacement
